Features
- 10-inch industrial color touchscreen HMI
- Intuitive system operation interface
- Compatible with discrete I/O, Modbus, Profinet, EtherCAT communication protocols
- High-precision flow meters + proportioning valve control
- Integrated explosion-proof atomizer process control enclosure
- Optimized compact, smooth fluid path design
- Distributed, small-footprint configuration
Advantages
- Rapid parameter configuration and effective process control via user-friendly HMI
- Seamless integration with diverse automation systems
- Precise flow ratio accuracy and consistent, stable flow performance

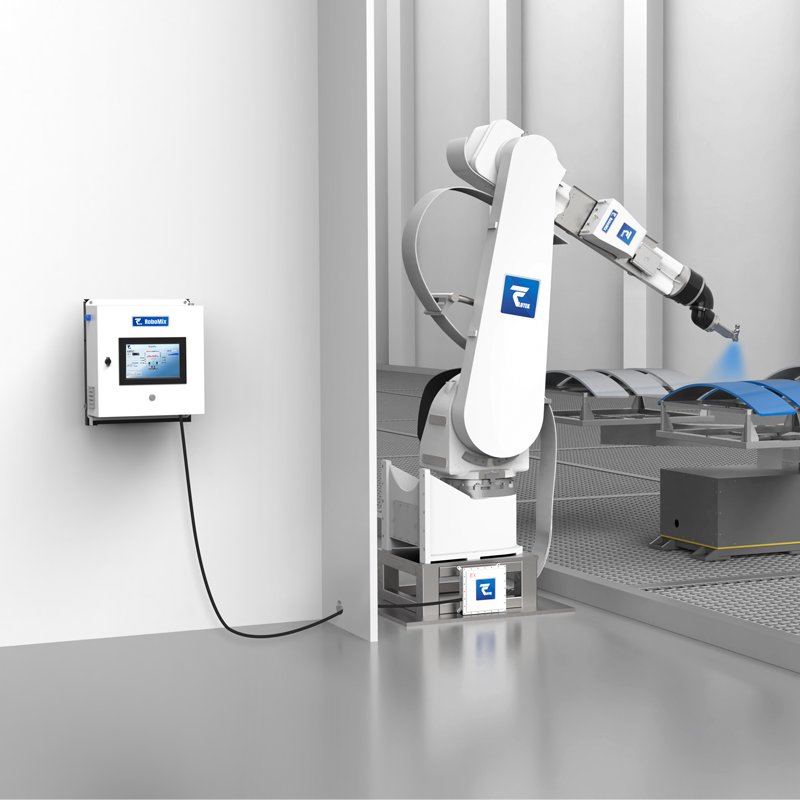

- Safe, convenient installation in hazardous locations (with automated atomization control)
- Residue-free fluid passage enables fast purging and low solvent consumption
- Remote deployability reduces paint waste
Applications
- Automotive Components
- Furniture & Wood Finishing
- Sanitary Ceramics & Bathroom Products
- 3C
- General Industrial: Hardware, Plastics, and More
TECHNICAL DATA TABLE
|
Parameter |
Value |
|
Max Material Pressure (Low-Pressure System) |
300 psi (21 bar, 2.1 MPa) |
|
Max Material Pressure (High-Pressure System) |
2000 psi (200 bar, 20 MPa) |
|
Max Air Pressure |
100 psi (7 bar, 0.7 MPa) |
|
Ratio Range |
0.1:1 to 50:1, ±1% accuracy |
|
Flow Range |
20–3800 cc/min |
|
Viscosity Range |
20–5000 cps |
|
Noise |
<75 dB(A) |
|
Power Supply |
AC 220 V, 50–60 Hz, 4 A |
|
Operating Temperature |
5–50°C (41–122°F) |
|
Dimensions |
520 mm × 250 mm × 180 mm (Reference) |
|
Apply Materials |
Solvent-based, water-based, and acidic coatings/cleaners |
|
Wetted Parts |
316 Stainless Steel, FFKM, PTFE |
|
Weight |
15 kg |
