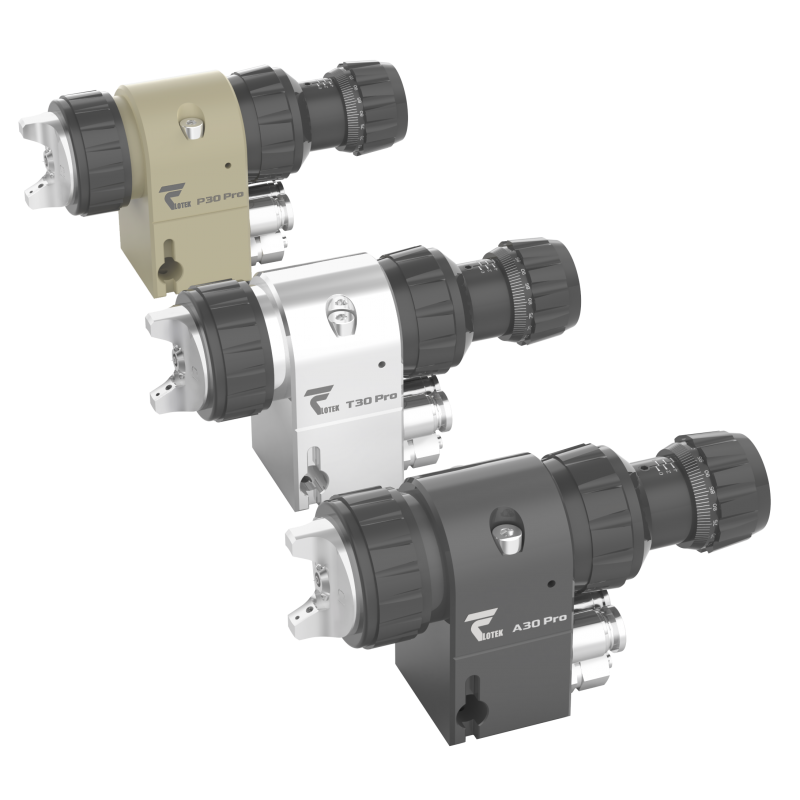

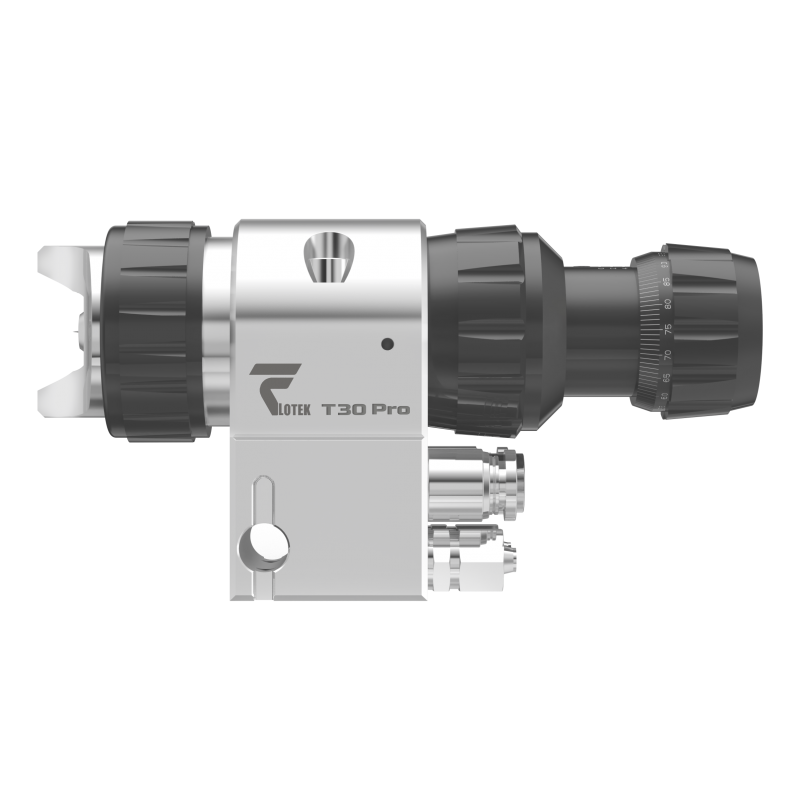

T30 Pro Automatic Air Spray Gun
T30 Pro Automatic Air Spray Gun
T30 Pro Automatic Air Spray Gun
OVERVIEW
T30 Pro Automatic Air Spray GunBoasting outstanding all-round performance, it fully meets the requirements for precision spraying of small components. Its professionalism and high efficiency as a precision spraying tool are reflected in every aspect, from design and material selection to functional configuration.
The T30 Pro Automatic Air Spray Gun is compatible with both solvent-based and water-based coatings. It is particularly suitable for spraying UV coatings and abrasive coatings, and its design and material selection ensure high efficiency and long-lasting performance in the application of these special coatings.
Description

Features

  • Dual C1/C2 air caps (supports HVLP/LVMP spray technologies)
  • Triple-layer needle seal structure
  • Micrometer-style precision adjustment knob
  • Quick-disconnect air inlet & seat connection
  • 316 stainless steel + wear-resistant needle assembly
  • Multi-mount options (block/robot/PEEK)
  • Optional PEEK lightweight body (54% lighter than 316 steel)
  • Carbon fiber integrated gun mount (44% lighter, 7x stronger than aluminum)

Automatic Air Spray Gun
 Automatic Air Spray Gun
 Automatic Air Spray Gun
 Automatic Air Spray Gun

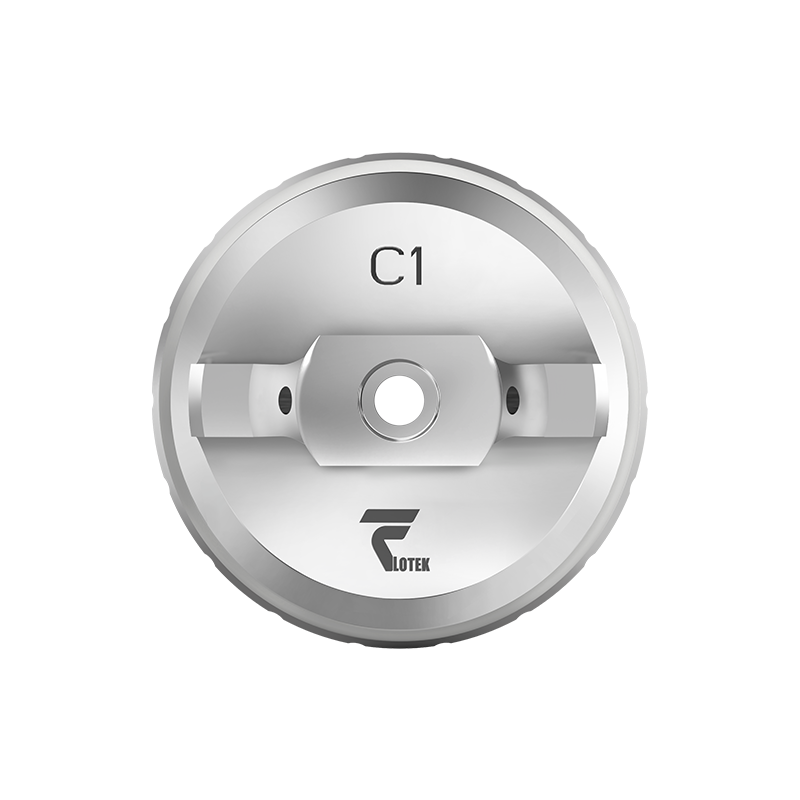

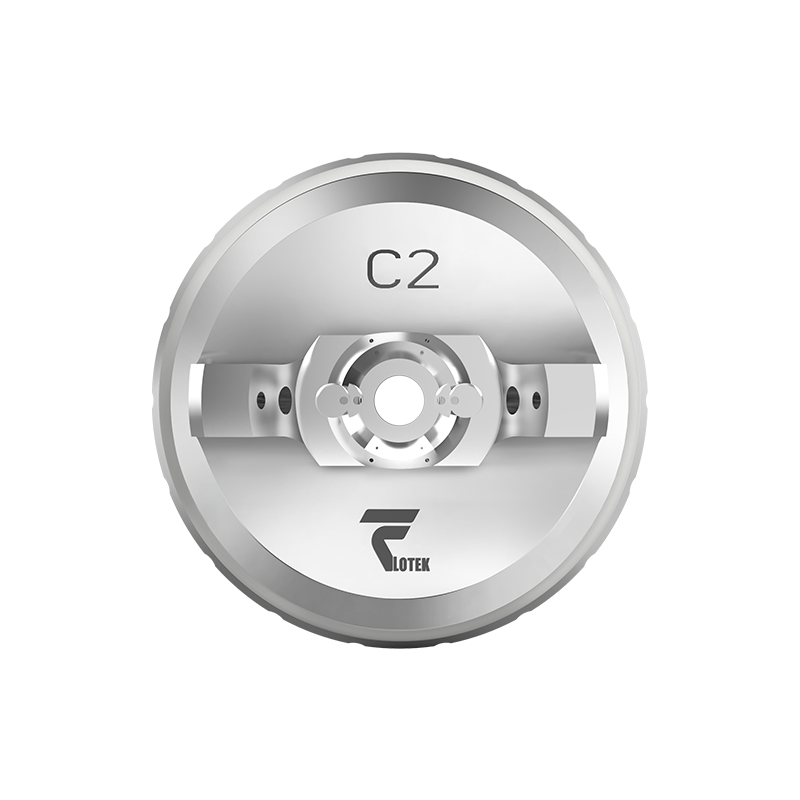

C1  Air Cap C2 Air Cap

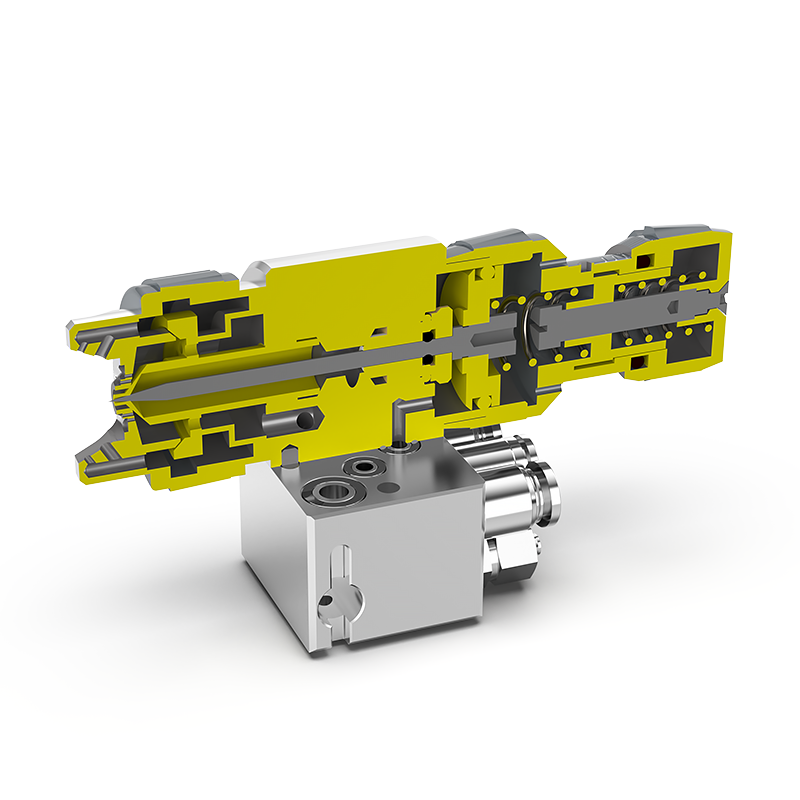

 Sectional View

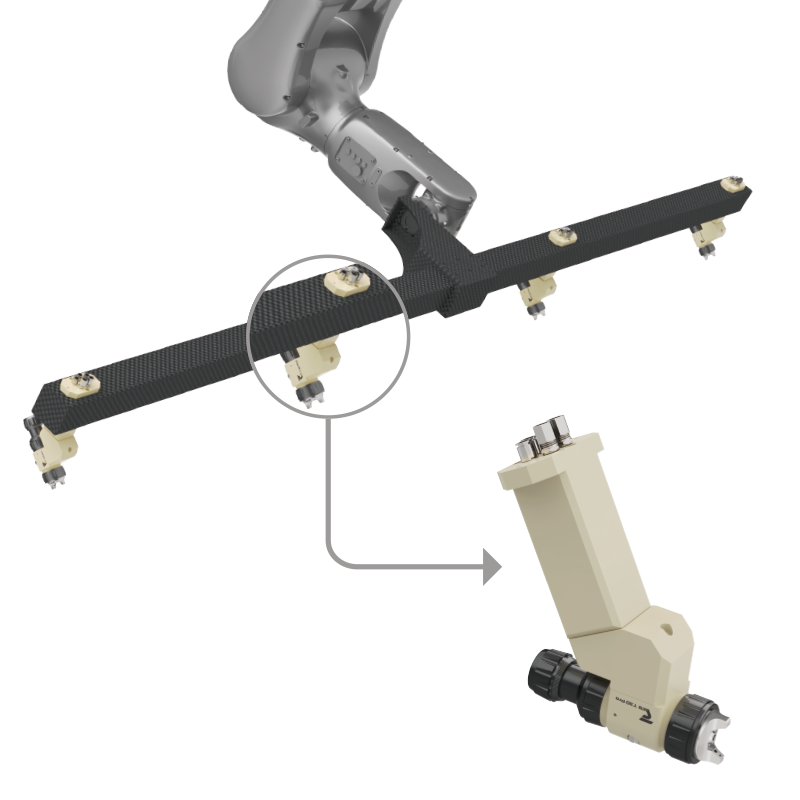

 Lightweight Gun & Gun Mount


Advantages

  • Flexible spray tech selection for diverse applications
  • Durable performance with UV/abrasive coatings
  • Precise, repeatable spray quality
  • Fast maintenance & enhanced process control
  • Stable flow & consistent coating results
  • Adapts to manual/robotic spray setups
  • Reduces robotic load & extends equipment lifespan
  • Vibration-free, precise positioning for robotic spraying



Applications

  • Automotive Components
  • Furniture & Wood Finishing
  • Sanitary Ceramics & Bathroom Products
  • 3C
  • General Industrial: Hardware, Plastics, and More



TECHNICAL DATA TABLE

Designation
 Value
Max  Material Pressure
 100 psi (7 bar, 0.7 MPa)
Max Air Pressur
 100 psi (7 bar, 0.7 MPa)
Operating Temperature
 5 - 50°C (41 - 122°F)
Mini  Air Actuation Pressure
 50 psi (3.4 bar, 0.34 MPa)
Wetted  Parts
 316 Stainless Steel, PEEK, FFKM, PTFE, Tungsten Steel, Aluminum Alloy
Weight
 SUS316: ~560g; PEEK: ~260g
