In modern coating production, high-pressure spraying, thick film builds, and continuous extended operation have become standard. Under these demanding conditions, color change valves must deliver higher pressure resistance, faster response times, and exceptional durability.

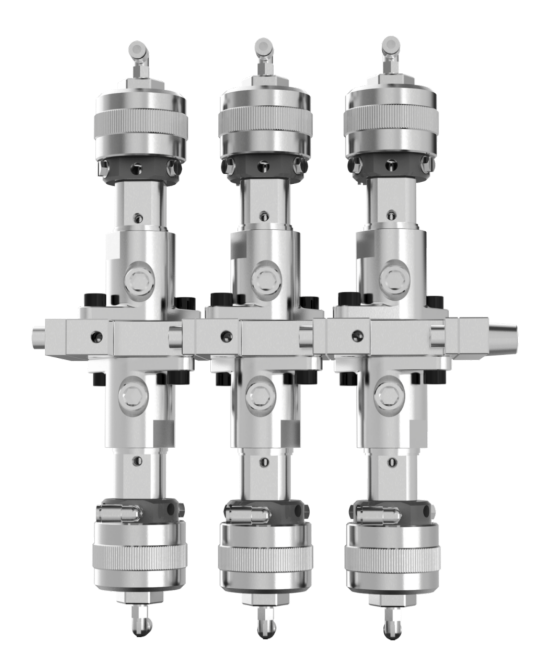

Teda Robotics's CV3000 Stainless Steel High-Pressure Color Change Valve, with a maximum pressure rating of 3000 psi (210 bar) and engineered to premium performance standards, provides a stable and efficient solution for high-pressure coating processes.

01 Product Advantages

High-Pressure Endurance, Stable & Reliable

Max. fluid pressure 3000 psi (210 bar, 30 MPa), engineered for high-pressure spraying systems.

Tungsten carbide + SUS316 switch seat for combined wear resistance and corrosion resistance.

Precision-machined valve with over 1,000,000 cycles (depending on coating characteristics).

Fast Response, Higher Efficiency

Dual-acting pneumatic actuator enables fast valve switching and precise operation.

Valve seat return flow design maintains paint circulation, preventing sedimentation and clogging.

Upgraded Materials, Broader Compatibility

Wetted parts: 316 stainless steel, PTFE, UHMWPE, tungsten carbide.

Compatible with diverse fluids: Primer, topcoat, clear coat, solvent-based & water-based paints, polyurethane, epoxy, etc.

Modular Design, Flexible Expansion

Configurations: 1-color/1-flush, 3-color/1-flush, 5-color/1-flush, up to 15 colors.

Quick-disconnect design for easy capacity scaling, adapting to various production needs.

02 Application Fields

High-pressure coating for automotive OEM and components

Heavy-duty corrosion protection and industrial high-pressure painting lines

Thick-film coating for wood, appliance housings, and metal parts

Automated spraying lines with high-intensity, multi-shift operation

03 Quality Assurance

At Teda Robotics, every color change valve undergoes rigorous valve seal testing before shipment to ensure leak-free performance and zero operational risks.

This is our commitment to customers: delivering not only high-performance equipment but also quality standards that withstand the toughest validation.

04 Conclusion

From material selection to precision manufacturing, from structural design to final inspection, the CV3000 High-Pressure Color Change Valve represents TD Robotics’ latest achievement in high-pressure coating technology. It not only meets the extreme demands of high-pressure environments but also delivers enduring stability, pure coating quality, and higher production efficiency.

Teda Robotics ensures every color change is efficient and reliable, and every spray cycle meets the highest standards of excellence.
